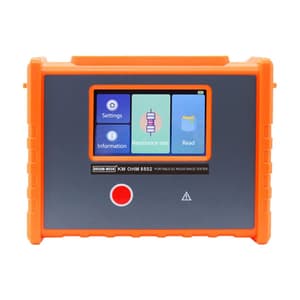

Handheld DC resistance tester, also known as transformer DC resistance tester, DC resistance fast tester, or ground continuity tester, adopts microprocessor technology, a four-wire method for testing, safe, precise and reliable. Mainly used to measure the resistance of transformer windings, transformer winding resistance, grounding down conductor continuity test, cable wire resistance, switches, connectors, contact resistance of relays, coils, motors, and equipment casings, lightning protection belts, and ground Connection resistance test between metal components of beams, structures, cabinets, steel bars, water pipes, windows, guardrails, radiators, assembly lines and other objects.

It is widely used in telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc. A handheld DC resistance tester is composed of a host, monitoring software, test lines, communication lines etc. The handheld and portable design of the host is convenient for on-site application, with a charging function, no need to find electricity on site, full-color large-screen LCD display, clear at a glance, convenient and easy to use touch screen operation, and port overload prevention function. The upper computer software has functions such as historical data reading, consulting, saving, and reporting.

Features:

• Function: Is mainly used for measurement of transformer DC resistance, transformer winding resistance, network connectivity, cable conductor resistance, contact resistance of switches, connectors, relays, winding, motor, transformer winding resistance and metal riveting resistance, metal component coupling between resistance test, low resistance testing, contact resistance testing, etc.
• Overflow Shows: The "OL" symbol is displayed when the over-range overflow occurs
• Cell Voltage: The battery power is displayed in real-time, indicating that the battery should be charged in time when the battery voltage is low
• Auto power-off: Turn off the meter after no operation for about 15 minutes
• Power Consumption: Standby - approx. 116mA (20% brightness) / Measurement: 27W Max
• Electromagnetic property: IEC61010-4-3, wireless frequency electromagnetic field ≤1V/m
• Suitable for safety: IEC61010-1, CAT ? 600V, Pollution level 2, JJG724-1991 <<VERIFICATION Regulation of DC Digital Ohmmeter>>, JJG166-1993 <<Verification Regulation of DC Resistor>>, <<VERIFICATION Regulation of DL/T967-2005 Circuit Resistance Tester and DC Resistance Rapid Tester>>

Package Content:

• Meter
• Test Wire
• USB cable
• Charger
• Software CD
• Specification and warranty certificate
• Instruments box
