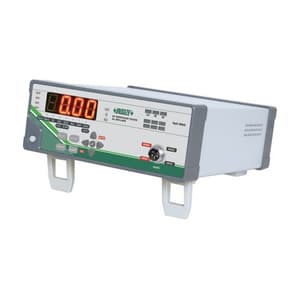

Insize 5000 Max. Reading DC Resistance Tester, 9654-LW50
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Weight: 2.1 kg
- Max. Reading: 5000
- Basic Accuracy: 0.2%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹42,705 (Incl. of all taxes)
₹36,191 + ₹6,514 GST (18%)
MRP was MRP ₹51,702
Save 30%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 0.8 inch high-brightness digital tube
- Full-range short-circuit zero function
- Comparator function: upper and lower limit alarms
Technical Data
| Function | Range | Resolution | Accuracy ("d" is the least reading) |
| Slow Test | 50mΩ | 0.01mΩ | ±(0.2%+5d) |
| 500mΩ | 0.1mΩ | ±(0.2%+3d) | |
| 5Ω / 50Ω / 500Ω / 5kΩ | 0.001Ω / 0.01Ω / 0.1Ω / 0.001kΩ | ±(0.2%+2d) | |
| 50kΩ | 0.01kΩ | ±(0.2%+3d) | |
| 200kΩ | 0.1kΩ | ±(0.2%+5d) | |
| Fast Test | 50mΩ | 0.01mΩ | ±(0.5%+5d) |
| 500mΩ / 5Ω / 50Ω / 500Ω / 5kΩ / 50kΩ | 0.1mΩ / 0.001Ω / 0.01Ω / 0.1Ω / 0.001kΩ / 0.01kΩ | ±(0.5%+3d) | |
| 200kΩ | 0.1kΩ | ±(0.5%+5d) |
Package Content:
- 1x DC Resistance Tester

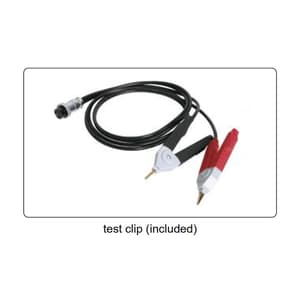

- 1x Test Clip
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Reading | 5000 |
|---|---|
| Basic Accuracy | 0.2% |
| Range Mode | Auto Range & Manual Range |
| Test Speed | 3t/s (Slow) & 10t/s (Fast) |
| Beep | OK & NG |
| Power Supply | 200V±10% (AC), 50Hz |
| Dimension (mm) | 259 x 220 x 85 mm |
