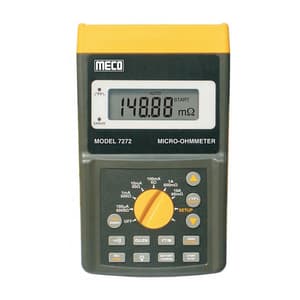

Micro - Ohmeter with PC Interface via RS232 - USB Communication and User Software, Test Current : 10A DC (120m), Four Terminal Kelvin Measurement, Manual / Auto Range, Measurement of Resistive and Inductive Materials, Setting for HI, LO & PASS Readings, Memory of 3000 Measurements Data, Programmable HI-LO Alarm with memory of 20 Data, Cable Length Measurement in feet & meters, User Interface Software for PC Communication viaRS232C (to USB Bridge) cable, 1 Set of Kelvin Clips

Features & Benefits:

• Basic Accuracy 0.25%
• Max. Test Current : 10A (60mΩ) for 7272
• Manual or Auto Range
• Four Terminal Kelvin Measurement
• 6 Ranges with 1mV Best Resolution
• Measurement of Resistive and Inductive Materials
• Setting for HI, LO & PASS Readings
• Memory of 3000 Measurements Data
• Programmable HI-LO Alarm with memory of 20 Data
• Large LCD with Backlight & HOLD Function
• Low Power Consumption
• Battery Operated with AC Adaptor
• Low Battery (Voltage) Alarm
• LED indication for Invalid Resistance Measurement
• Cable Length Measurement in feet & meters
• User Interface Software for PC Communication viaRS232C (to USB Bridge) cable
• Built-in Battery Changing Circuit & Calender Clock

General Specifications:

• AC Adaptor: Input 110V or 220V AC, Output DC 15V/1-3A
• LCD Display & 5/6 Digit+ Backlight
• Dimension: 260 x 158 x 70mm (approx.)
• Weight: 1125gms Including Battery (approx.)
• Environment: 0°C -50°C ≤85% RH(Operation)  ,20°C -60°C ≤75% RH (Storage)

Accessories:

• Users Manual x 1
• Software Manual x 1
• Software CDx1
• RS232C (to USB Bridge) Cable x 1
• AC Adaptor x1
• 11.1V Rechargeable Lithium Battery (1600mAh) x 1 for 7002 1
• 1 Set of Kelvin Clips Carrying Bag
• Optional: 4 Wire Test Leads, Double Prods Alligator Clips

Specifications:

AC Adaptor: Input 110V or 220V AC, Output DC 15V/1 to 3A

Battery Charging time: 10 hrs

Display: 4 5/6 Digit LCD Display With Backlight

Electrical Specification:  23 Degree +/- 5 Percent

Environment: Operating - 0 to 50 Degree C Greater Than or Equal to 85 Percentage RH, Storage: - 20 to 60 Degree C Greater Than or Equal to 75 Percentage RH

Max. Test Current: 10A (60 mOhm)

Resistance: Manual Range - 1 to 8, 5 to 32, 10 to 120 MOhm, Auto Range - 1 to 8, 8 to 120 m Ohm

Resolution: Manual Range -10 Micro ohm, Auto Range - 1 to 10 MOhm
