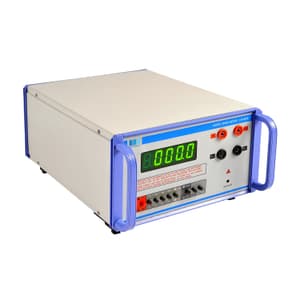

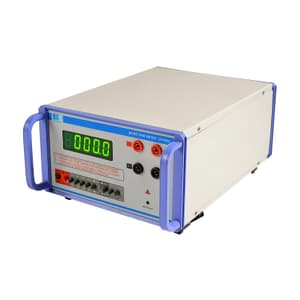

Motwane’s Digital Micro Ohmmeter, LR -2065, comes with a maximum 10A DC current injection which is useful for the measurement of very low resistances (as low as 0.1 μΩ) in micro ohms. Mains cum rechargeable battery operated LR-2065, works on the proven principle of four wire measurements. The LR-2065 has 4½ digits LED display with a resistance measurement range from 2mΩ to 20KΩ, with a minimum resolution of 0.1μΩ. The pulse mode operation is an additional feature. The LR-2065 can be used for measuring the resistance of cables, wires, PCB relay, LT bus-bar, graphite electrodes, quality testing of resistive components, low capacity motors, etc.

Features:

• 4½ digits LED display with annunciations
• Resolution of 0.1 μΩ on 2 mΩ range
• Mains cum battery operated (rechargeable Ni-Cd)
• High measurement current of 10A for faster settling of measured values on low resistance
• True four-wire resistance measuring technique eliminates lead resistance errors
• Pulse mode with auto hold operation
• Low battery indication to prevent the deep discharge of the internal recharging battery

Application:

The high precision micro ohmmeter is used for measuring accurate low resistance with high accuracy, thus making it a reliable tool for quality assurance and easy operations. It comes in handy for quick maintenance checks for process industries. Typically It is very useful in design, test, maintenance, QC/QA, and production. Typical applications include the measurement of:

• Cables
• Electrodes
• Relays
• Components
• Bus Bars
• PC Boards
• Low rating motors & contactors
• Transformers weld joints
• Shunts

Technical Data:

Range	Resolution	Max Current	Accuracy ±(%rdg + Digits)
2 mΩ	0.1 μΩ	10 A	± 0.03%±4
20 mΩ	1 μΩ	1 A
200 mΩ	10 μΩ	0.1 A
2000 mΩ	100 μΩ	0.01 A
20 Ω	1 mΩ	0.1 A
200 Ω	10 mΩ	0.01A
2000 Ω	100 mΩ	1 mA
20 kΩ	1 Ω	0.1 mA

Package Content:

• Digital micro ohm meter
• Test leads with GP Kelvin clip
• Test leads with GP Crocodile clip
• Mains cord
• Instruction manual
