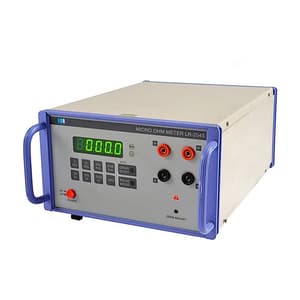

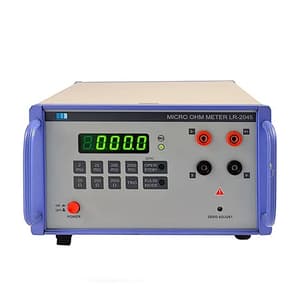

Motwane’s Digital Micro Ohmmeter- LR-2045 is capable of measuring very low resistances (as low as 0.1 μΩ) in micro ohms. This easy to use ohm meter has a 4½ digits LED display. LR-2045 intends to replace the Kelvin bridge and old technology micro ohmmeters to increase productivity, thus saving time. It works on the proven principle of the four wire measurements. The resistance measurement range of LR-2045 is from 2mΩ to 2kΩ with a minimum resolution of 0.1μΩ. The maximum DC current injection is 1A. The pulse mode operation is an additional feature along with the PC interface. The LR-2045 can be used for measuring the resistance of cables, PCB, Relay, LT bus bars, low capacity motors, welded joints, etc.

Features:

• 4 ½  digits LED display
• Resolution of 0.1μΩ on 2mΩ range
• RS 232 PC interface.
• True four wire resistance measuring technique Eliminates lead resistance errors inherent in two wire measurement systems
• Pulse mode operation

Application:

Some of the more popular and most frequent uses of the micro-ohmmeter are in applications for:

• Cables
• Relays
• Bus Bars
• Electrodes
• Low rating motors & transformers
• Components
• PC Boards
• Contactors
• Shunts
• Weld Joints

Technical Data:

Range	Resolution	Max Current	Accuracy ±(%rdg + Digits)
2 mΩ	0.1 μΩ	1 A	±(0.05 ±5)
20 mΩ	1 μΩ	1 A
200 mΩ	10 μΩ	100 mA
2000 mΩ	100 μΩ	10 mA
20 Ω	1 mΩ	10 mA
200 Ω	10 mΩ	1 mA
2000 Ω	100 mΩ	0.1 mA

Package Content:

• Digital micro ohm meter
• Test leads with GP Kelvin clip
• RS 232
• Main power cord
• Instruction manual
